products

light + motion  |  trimless

projects

coming soon !

finishes

aluminium  |  anodized  +  powdercoated

custom brass  |  brunished

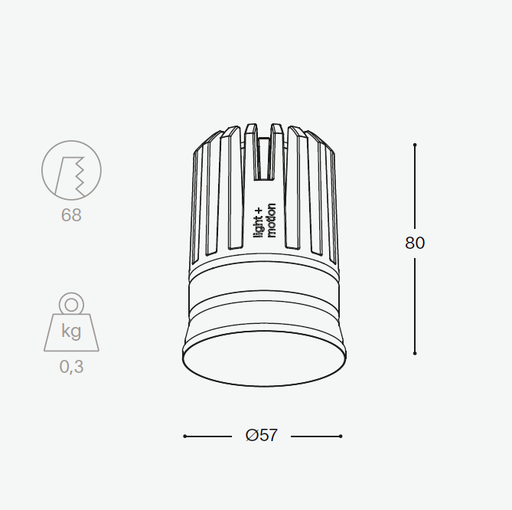

dimensions

data sheet

led

cob max. 8,2w  |  48v |  700lm

light control

on -off  |  phase -dimming |  1 -10v  |  dali  |  dali deep

colour temperature

2700k  |  3000k  |   4000k on request

colour rendering index

cri90+

diffusor

opal

protection

ip65  |  ip20  |  class III

photometrical data

installation

lamp

motion

flush mounting

plasterboard  12 mm

plaster ceiling  3,5  - 20 mm

plastered  ceiling 12 - 33 mm

exposed concrete

wooden panel

cold stretch ceiling
